The New Pinarello Dogma X

Pure cycling, multiplied by X. Built from the ground up for riders who demand elite Grand Tour performance but live for long days in the saddle, the new generation Dogma X completely redefines what an endurance road bike can achieve.

Sitting at the pinnacle of Pinarello's endurance range, this exceptional machine strikes the ultimate balance between high-calibre reactivity and real-world compliance. It is engineered not just for raw speed, but to heighten the emotional experience of every mile.

Key Technical Innovations

• TorayCa M40X Carbon: Utilizing the same ultra-premium, high-tensile carbon fiber found on the WorldTour-winning Dogma F, the frame achieves an exceptionally lightweight profile, superior structural durability, and unmatched power transfer.

• X-Stays 2.0 Technology: Pinarello’s signature rear-triangle design undergoes an elegant evolution. The redesigned double-arm, four-point top-stay configuration utilizes a lower bracing angle on the seat tube. This allows for controlled vertical flex to absorb harsh road vibrations and eliminate bouncy rebound, all while retaining explosive bottom bracket stiffness.

• Optimized Endurance Geometry: A dedicated geometry available in 11 meticulously scaled sizes (43cm to 62cm). Boasting a slightly higher stack (+15.4mm) and shorter reach (-3.9mm) relative to racing frames, it allows you to sustain peak power and an efficient, comfortable riding position over staggering distances without stacking excessive spacers.

• Aero-Enhanced Stiffness: Drawing aero DNA from the Dogma F, the front end features an innovative elliptical steerer tube with TiCR (Total Internal Cable Routing) to optimize airflow and boost front-end tracking stiffness. A newly tapered down tube slices drag while increasing lateral stiffness for surefooted, confident descending.

• Generous 35mm Tire Clearance: Optimized for modern high-volume tubeless setups, the 35mm clearance unlocks maximum road comfort and traction across changing pavement surfaces without sacrificing the agile handling of a dedicated road bike.

• Asymmetric Frame Design: Built with Pinarello's signature asymmetry to perfectly counteract the uneven, drive-side forces applied to the drivetrain, ensuring a perfectly balanced ride under load.

• Future-Proof Integration: Fully compatible with premium electronic groupsets and updated with a SRAM UDH (Universal Derailleur Hanger) dual-mount system for maximum derailleur compatibility.

Premium Specs

• Frame Material: TorayCa M40X Dream Carbon with Nanoalloy technology

• Fork: Signature ONDA Fork with integrated aero flaps and closed dropouts

• Cable Routing: TiCR (Total Internal Cable Routing)

• Bottom Bracket: Italian threaded

• Braking: Disc brake specific, with Ultra Light Custom Axles (12x100mm front / 12x142mm rear)

• Tire Clearance: Up to 700x35mm

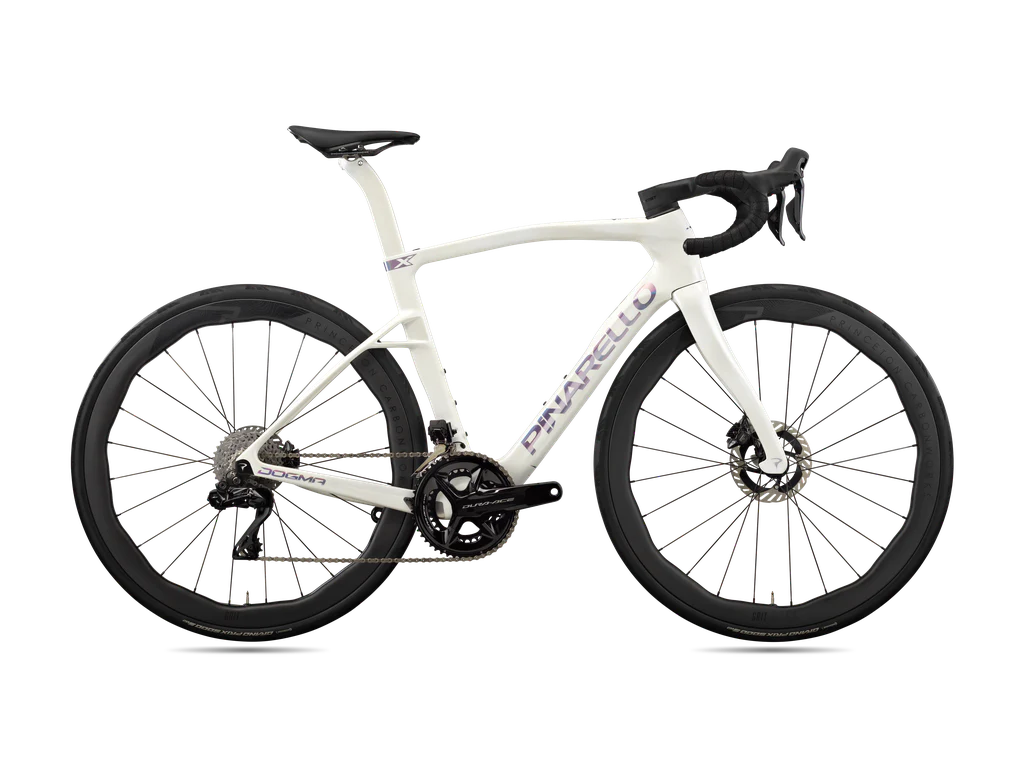

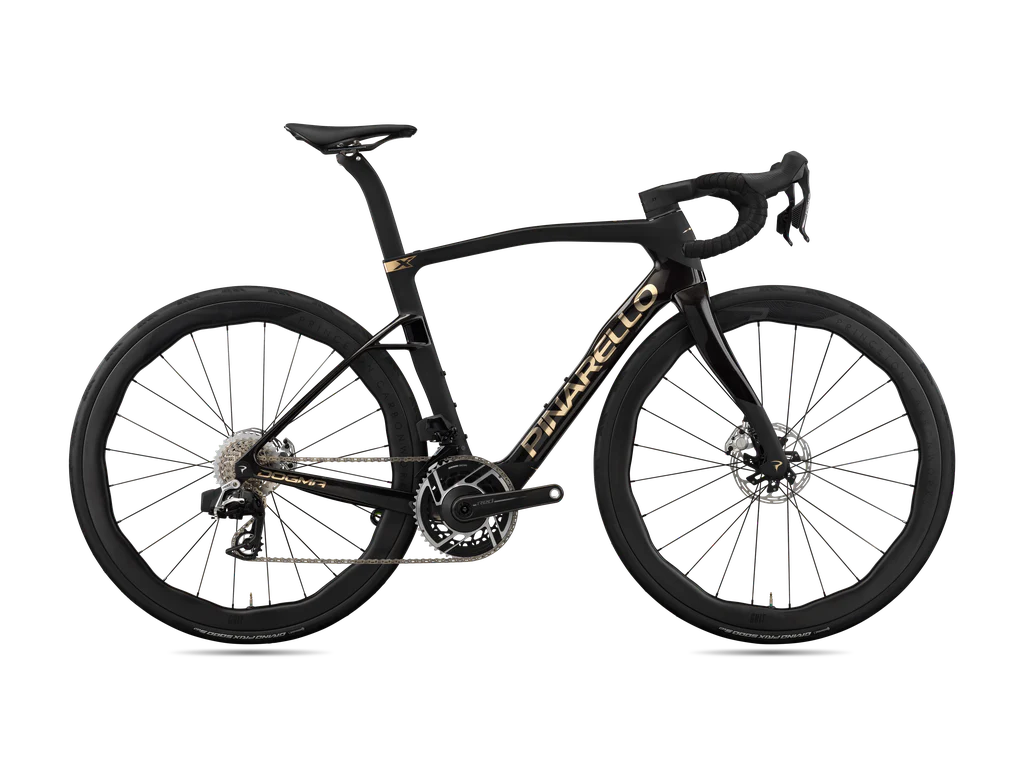

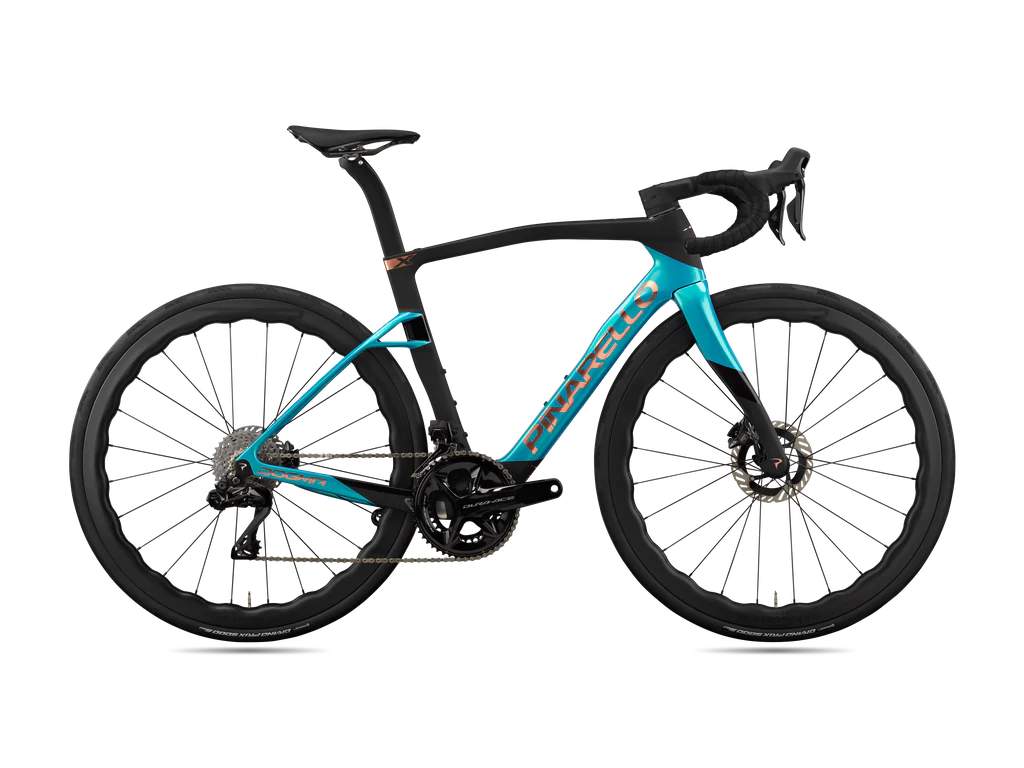

• Colorways: Moonlight Frost, Etna Lucente, Aqua Veil, Jade Eclipse (Customization available via Pinarello MyWay)

"The new DOGMA X is the ultimate all-rounder. It delivers exceptional reactivity, stiffness, and acceleration, but with a carbon layup and design optimized for everyday road surfaces." — Fausto Pinarello, Chairman

Pre-order available now!
